kaning mga designer sa mobo ba, wla gyud ko maka ayon aning style nila for the PCIe position... kahibaw sila na m-ATX ang gi design nila na mobo... unya, naa'y mga chassis na designed for a m-ATX form factor mobo (pwede pud sila'g mini-ITX)... kani na mga chassis, kay lagi, designed man sila sa m-ATX form factor, ang ilahang available na expansion slots kay 4x max na gyud... dapat, ang mga multi-GPU mobo na m-ATX "must" be designed to be compatible on such chassis... pero, daghan m-ATX mobo na naa sa 1st and last slot ang PCIe... unsaon man kuno ni pag sulod sa m-ATX chassis ang 2nd GPU na usually, dual slot man ni sila... kun masulod (dili gyud ni masulod), gamay na kaayo ang gap para sa good airflow sa 2nd GPU... tsk tsk tsk... pagka ayo'ng lusi-on sa mga bugan aning mga designer woi... tsk tsk tsk...
sample... both products are from MSI...

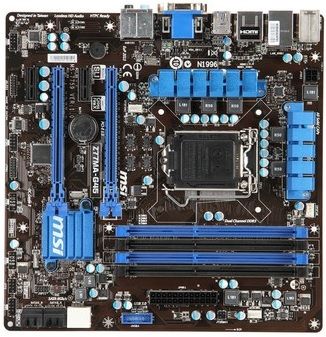

nice PCIe position for dual GPU...

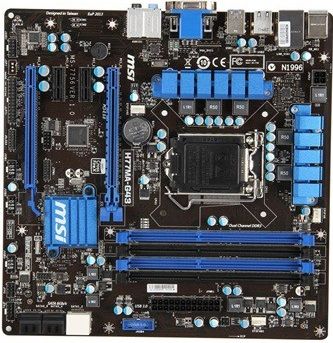

not so nice PCIe position for dual GPU...

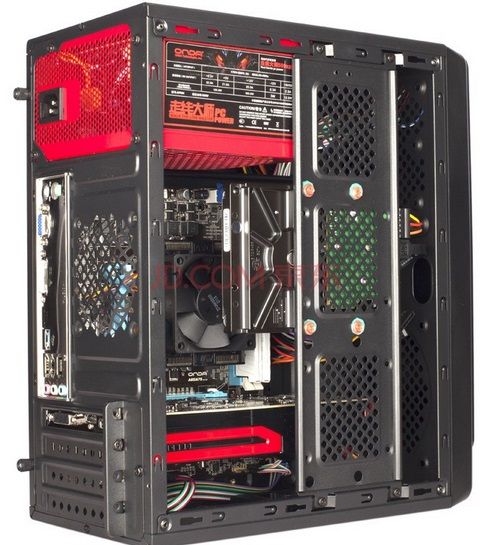

m-ATX chassis...
Results 1 to 10 of 32
Thread: m-ATX mobo design for Dual GPU
-
08-06-2013, 11:31 PM #1C.I.A.
- Join Date
- Mar 2005
- Posts
- 10,898
m-ATX mobo design for Dual GPU
Last edited by lloyd_joy; 08-06-2013 at 11:44 PM.
-
08-07-2013, 12:03 AM #2C.I.A.
- Join Date
- May 2011
- Gender
- Posts
- 4,495
Originally Posted by lloyd_joy
Hehe. Ana gyud na bro. Only upper end chips do come with a real multi-gpu design in mind. Kanang mga mid-end ug entry level boards nga kasupport KUNO ug multi-gpu, propaganda ra na. Wala man gud sila enough pcie lanes to take optimal advantage of multi-gpu. 4x ra at most ang second slot sakto ra for a physx card or a soundcard. Ug kung possible man nga 8x sya, dili na nila i-implement kay ma-cannibalize na nuon ang sales sa high-end boards. Its really nothing but a marketing strategy..
-
08-07-2013, 12:07 AM #3C.I.A.
- Join Date
- Jan 2006
- Gender
- Posts
- 8,871
ka relate ko ani,
Asus P8B75
ang ika duhang PCI-E slto kay not so good ang position.
and another
SAta ports pud nuon to
Asus P8H61 v1.
luoy kaayo akong mga sata cables
napiit sa ilawom sa VCLast edited by butitoy; 08-07-2013 at 12:10 AM.
-
08-07-2013, 12:28 AM #4C.I.A.
- Join Date
- Mar 2005
- Posts
- 10,898
Originally Posted by keropi

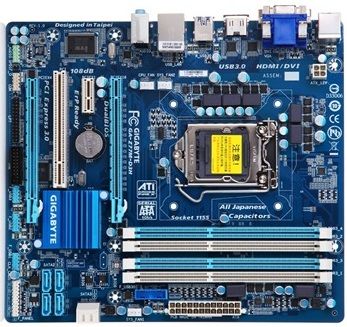

mao lagi... ang mga H77 mobo, halos tanan kay Crossfirex compatible ra... meaning, ang 2nd PCIe slot is only running at 4x speed... ang mga mag SLI, ad2 ta papaliton sa top tier... tuwingwingwing... pwede ra man gyud ning H77 for 16 lanes PCIe... pero, gi limit man sa manufacturers ug 12 lanes (or 8 lanes) lang ang PCIe in full operation... tsk tsk tsk... like aning sa Gigabyte oh... Z77 chipset gyud ni na mobo... but, 12 lanes (or 8 lanes) lang ang PCIe... marketing strategy gyud hinoon ni... wla ta' y dag-anan ani nila... hahay... paets... pwede ra ni hinoon i-software hack (Hyper SLI) pra maka dagan ang SLI kaso, dili masulod sa m-ATX chassis na...
ang akoang wla gyud giganahan ani bro kay ang position sa 2nd PCIe slot... bisan mag Crossfire, dili masulod ang 2nd GPU kun gamit ug m-ATX chassis... even if mag install ug 2nd GPU for Physx, dapat, single slot lang na GPU... ma defeat ang m-ATX design na compact kay paresan naman ug mid-tower to full tower chassis sya... tsk tsk tsk... luag kaayo tan-awon sa sulod...
Last edited by lloyd_joy; 08-07-2013 at 12:55 AM.
-
08-07-2013, 01:05 AM #5C.I.A.
- Join Date
- Mar 2005
- Posts
- 10,898

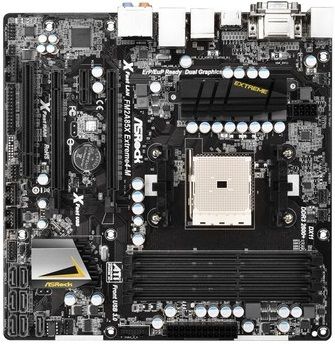

oi, naa'y nindot ug PCIe position ai for FM2 lovers/ fanatics... lami ni paresan ug Athlon II X4 750K... then dual AMD GPU dayon... ug m-ATX chassis... ayayayay... i'm not familiar on the performance of an Athlon II X4 750K though... nag mention lang ko ani nya kay wla man ni sya iGP... so, better suited for a multi-GPU set-up under FM2... or, go straight ahead and pair this mobo w/ the fastest APU to date... the A10-6800K... but, defeated ang purpose of the APU ani kun paresan ug discrete GPU... anyway, pwede man gyud pud hinoon...
Last edited by lloyd_joy; 08-07-2013 at 01:11 AM.
-
08-07-2013, 02:05 AM #6C.I.A.
- Join Date
- Jan 2008
- Gender
- Posts
- 2,077
Ok ra ko ani boss, hilig ko og triple slot GPU like Asus DC series
-
08-07-2013, 06:46 AM #7C.I.A.
- Join Date
- Mar 2005
- Posts
- 10,898
^ yeah, kumbati ra sya'y single GPU gyud... mas nice man unta gyud ni sila na compatible ug m-ATX chassis para magamit sa buyer ang 2nd PCIe slot if mag dual GPU... daghan man m-ATX chassis na nindot... kumbate kaayo pang lan party dha sa Pinas... sayon ra man gud dalahon...
-
08-07-2013, 07:06 AM #8Elite Member
- Join Date
- Apr 2013
- Gender
- Posts
- 1,560
speaking of lan party, maka ingon ko nga di nako mo usab ahaha mao naka hukom ko mag build ug 2nd rig na m-atx Originally Posted by lloyd_joy
-
08-07-2013, 07:11 AM #9C.I.A.
- Join Date
- Mar 2005
- Posts
- 10,898
^ hahahaha... maka buktot man ug dala2x ang full tower gyud bro oi... labi na ang imohang rig... samot pa gyud kun ang chassis kay CM Cosmos II then full Open LCS ug multi-GPU. na, mag dala gyud ug push cart... hehehe...
-
08-07-2013, 07:24 AM #10Elite Member
- Join Date
- Apr 2013
- Gender
- Posts
- 1,560
buktot mulang..ahahaha, di naman na case ang CM Cosmos II...if un modded nya walay sulod..mura jud ug gamay na ref..abli abli pud ka side panel..ahahaha, for lan parties generic na intex nga case ako gamit kay gaan ra hehe Originally Posted by lloyd_joy
