timer settings

[misterbot]

---

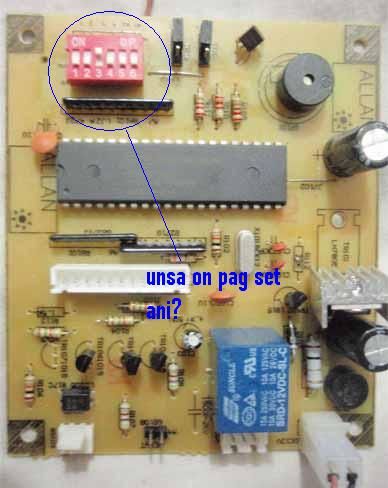

who can help me about this problem?

[eXpLoDe]

simple ra kaayo test it one by one then pa andaron. then next is pairing na pod like 1-2, 1-3, 1-4. until makita nimo ang exact combination nga imong gusto.

[misterbot]

ah ok sir.. pero unsa diay corresponding value ana nila sir?1-6?

[armel]

by default (all switches OFF), 1min.. then every switch # corresponds to # of mins : 1= 1min, 2=2mins, so on.. kung i-ON nimo ang switch1, time setting is 2mins(1min default + 1min for switch1),. kung switch 1 &2 = 4mins (1min default + 1min for switch1 + 2mins for switch2)..ang 5th & 6th switch are the multipliers.. tan-awa ang board naa na label bro.. turning ON multiplier (e.g. x5) will increase the time setting 5 times.. kung nag set ka ug 4mins, nya gi-on nimo ang x5 multiplier, mahimo nang 20mins ang time.

[misterbot]

thank you so much mga sir...

[stealthghost]

Binary - Decimal

|8|4|2|1| Multiplier x ambot

|0|0|0|0| = 0
|0|0|0|1| = 1 minute
|0|0|1|0| = 2 minutes
|0|0|1|1| = 3 minutes
|0|1|0|0| = 4 minutes
|0|1|0|1| = 5 minutes

and so on..

just add 8,4,2,1 sa babaw kung asa naa'y 1..
the switch is the binary code.

0 = off
1 = on

based sa DIP Switch given sa itaas, wa ko kahibaw asa ang 8421, but you can experiment on that.
but I'm pretty sure, naa sa 1234 nga number.

if libug mo, i'll test one later, kung naa pa mi stock..

EDIT: Based sa previous post, default is 1 minute.

|1|2|3|4| Switch Number (basin bali sa akong table below, test lang) |5|6| Multiplier
|8|4|2|1| Binary column value

|0|0|0|0| = 0 (+ 1 min)
|0|0|0|1| = 1 minute (+ 1 min)
|0|0|1|0| = 2 minutes (+ 1 min)
|0|0|1|1| = 3 minutes (+ 1 min)
|0|1|0|0| = 4 minutes (+ 1 min)
|0|1|0|1| = 5 minutes (+ 1 min)
