Intel DG45ID mobo

[vashtinone]

---

posting for a friend..

Selling Intel Desktop Board DG45ID motherboad for Php 4,200
slightly negotiable....
almost 3 months used..in very good condition, with I/O shield, driver, diagram sticker, floppy disk for raid and receipt for store warranty..
SPECS:
Features and benefits
Form factor MicroATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])

Processor

View supported processors for the most current list of compatible processors.

At product launch, this desktop board supports:

* Support for an Intel® Core™2 Quad processor in an LGA775 socket
* Support for an Intel® Core™2 Duo processor in an LGA775 socket
* Support for an Intel® Pentium® processor in an LGA775 socket
* Support for an Intel® Celeron® processor in an LGA775 socket
* Support for an Intel® Celeron® processor 400 sequence in an LGA775 socket

Memory

* Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
* Support for DDR2 800/667 MHz DIMMs
* Support for up to 8 GBΣ of system memory

Chipset

* Intel® G45 Express Chipset

Audio

Intel® High Definition Audio subsystem in the following configuration:

* 8-channel (7.1) audio subsystem with five analog audio outputs and one optical S/PDIF digital audio output using the IDT 92HD73E audio codec

Video Intel® Graphics Media Accelerator X4500HD onboard graphics subsystem with integrated HDMI + DVI-I display ports
LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82567LF Gigabit Ethernet Controller
Peripheral interfaces

* Up to 12 USB 2.0 ports (6 back ports and 6 via headers)
* Six Serial ATA 3.0 Gb/s ports, including 1 eSATA back port with RAID 0, 1, 5, 10 support
* Two IEEE-1394a ports (1 external port, 1 internal header)
* Consumer IR receiver and emitter (via internal headers)
* One serial port via header

Expansion capabilities

* One PCI Express* x16 bus add-in card connector
* Two PCI Express* x1 bus add-in card connectors
* One PCI Conventional* bus add-in card connector



Related products
Processors

* Intel® Core™2 Quad processor
* Intel® Core™2 Duo processor
* Intel® Pentium® processor
* Intel® Celeron® processor
* Intel® Celeron® processor 400 sequence

Chipsets

* Intel® G45 Express Chipset

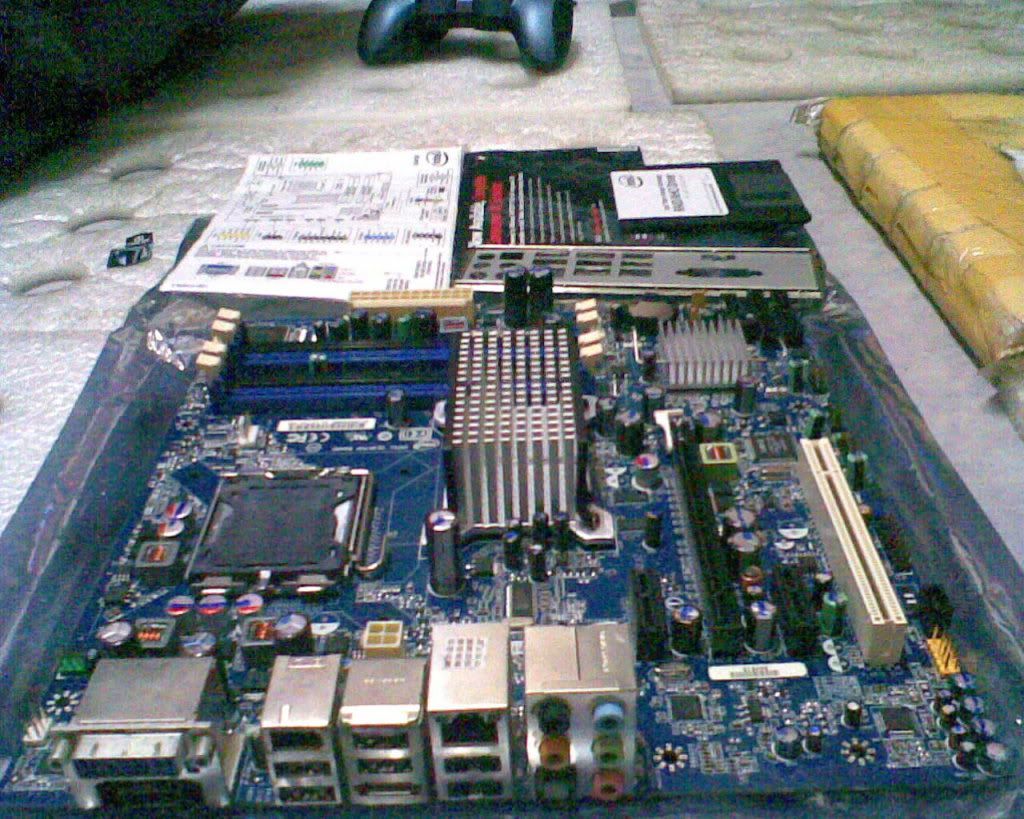

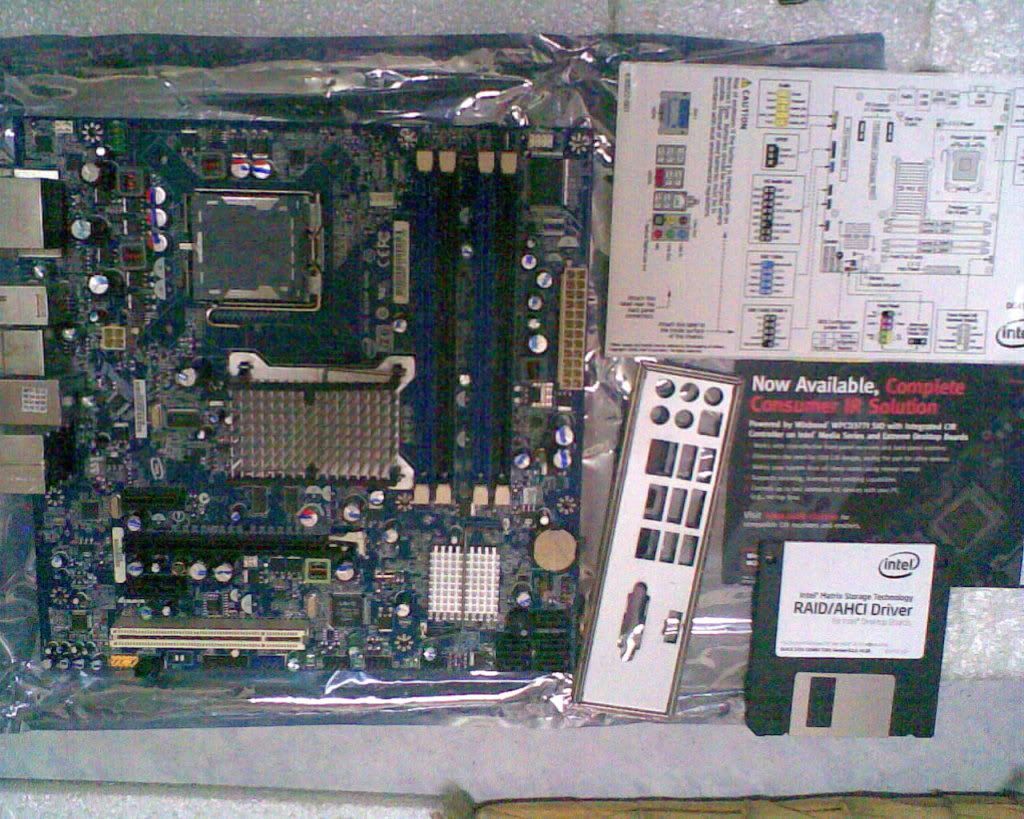

PICS: (actual)




PM me or text this # 0922-2717320

disclaimer:
*compatibility is not the seller's RESPONSIBILITY.
*The seller claim the right to sell of whomever he/she choose.

THANKS!!

[vashtinone]

for this noon...

[madmike]

socket unsa ni bro? 775?

[vashtinone]

socket unsa ni bro? 775?

yup.. LGA775 bro..

[vashtinone]

[vashtinone]

[Der FüHRER]

bro naa ba niy oc options sa bios? ngita kog matx mobo para magamit akng matx case..hehe

[vashtinone]

wala ko kabantay bro.. dli mani akoa gd sa ako ni migo patabang ra cya ug baligya.. pero pwde ra ako tan.awon kung naa ba oc option..

bro naa ba niy oc options sa bios? ngita kog matx mobo para magamit akng matx case..hehe
