AMD Phenom II X2 555 Black Edition Unlocked to Phenom II X4 B55

[devilsburger]

---

^^ for me it is brad..for some maybe not..

[devilsburger]

Just wanna share some infos bout this topic. Phenom X2 555 BE die shot shown below...



Now take a look at a Phenom II X4 die shot below. See the difference? You're essentially looking at 555 BE but despite the X2 moniker, it's a quad except it's simply handcuffed (for the moment). So the X2 555 BE is really just a Phenom II X4, but with 2 cores disabled. As we can see in the die shot, 4 cores are present. A Deneb with 2 cores disabled is codenamed Callisto, but it can easily be unlocked, as we'll see. It features all the L3 cache of Deneb, and has all cores present, it's just that two are disabled.

Ok, so now the big question: How to unlock those two extra cores of juicy computing power? Well, as much as we'd like to say it's a deep secret in the dark arts, it's not. In fact, it is a rather simple thing to do. The key is your motherboard; you must have one that has Advanced Clock Calibration (ACC) available in the BIOS. We went into BIOS and enabled ACC, and set it to “Unleashing Mode”, as it is titled on our ASUS Crosshair III Formula testing board. Reboot. The result? An unlocked quad for $99. Unleashing, indeed. Can you say "Booyah"?

When unlocked, the name of the chip changed from Phenom II X2 555 to Phenom II X4 B55. Interesting. Now, beyond the ACC requirement, there is one other caveat that needs mentioning here briefly. In the $100 price range, an unlockable Deneb is likely, especially with these newer chips, but you have to run the luck gauntlet; you may be able to unlock the chip, you may not. There is no guarantee, but if you're a betting person, we say go for it.

[regilsolon]

can you show us your core unlocking,overclocking. & stress test at least 6 hrs in OCCT.

[devilsburger]

^^ core unlocking was posted in the first page brad..from callisto to deneb I already posted there screenshot of cpuz..

overclocking? maybe not now I only wanted the cores to be unlock bag.o pa kayo ako system, maybe later kung mapul.an nko ani ako ni kalikuton..

stress test in occt?i have occt installed but i didnt try it 6 hours pa brad..i have run it on games on windows 7 64 bit 4-6 hours (a few times) without lock ups so far and that's all i need..

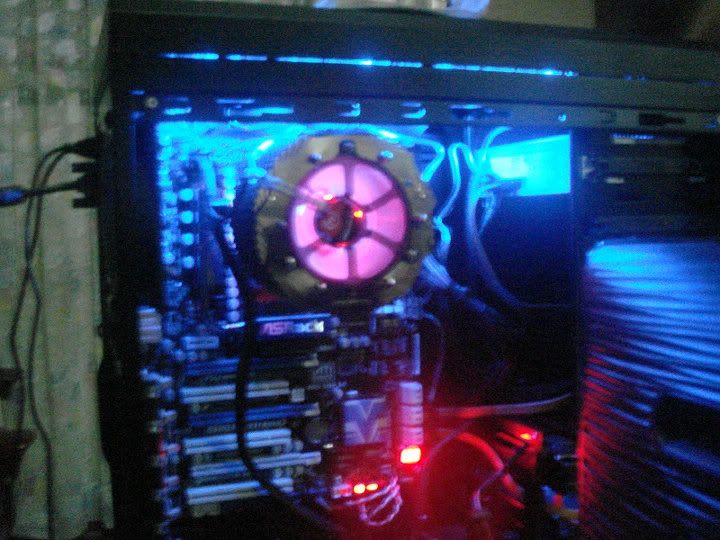

this is my system..sorry for the crappy pics..wala pa ni nko post kay wala pay videocard..

[EmoYBien]

@ts unsa na imong cooler bay?lingin lagi choy sad...btaw sayuaa noon nako sa imong 555be ahaha akong 555be na discourage nako...plan nako palit og lain..ahahha

[regilsolon]

how come your speed is 800mhz only ? maybe there's something wrong.

[devilsburger]

^^ CNQ was enabled in the bios brad that is why you can only see 800mhz and the Vcore was also 1.000 instead of 1.360 or so..I did that on purpose kay para save daw na sa kuryente..hehehe..

[devilsburger]

@ts unsa na imong cooler bay?lingin lagi choy sad...btaw sayuaa noon nako sa imong 555be ahaha akong 555be na discourage nako...plan nako palit og lain..ahahha

thermaltake spinq vt na brad..timing2x ra jud po ang makakuha atong unlock to quad na proc brad..mas nindot gani nga nigpalit nmo sa proc kay sealed pa jud para you will know na ikaw jud naka una ug gamit..

plano gani ko mag.ilis pohon kung madayon nigpalit sakong ig.agaw nga ram cooler kay di man gud masigo..idol ram cooler jud ni..

[regilsolon]

nag tipid d i ka sa kuryente.what's the purpose of your rig ? i'm sure you can afford for paying your electric bills.

[werty]

nganong dili man i enable ang C'n'Q when it is a free feature?
