My 2nd. Home Theater Construction Thread

[ArCkz]

---

Wow... another reunion for the CC peeps after the build ST? hehehe

[softtouch]

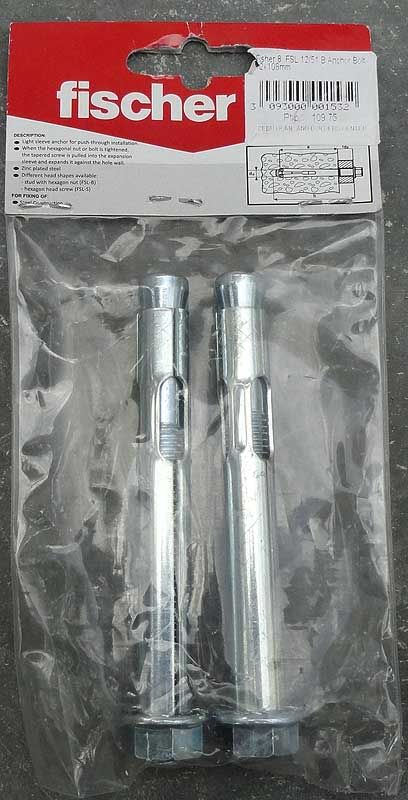

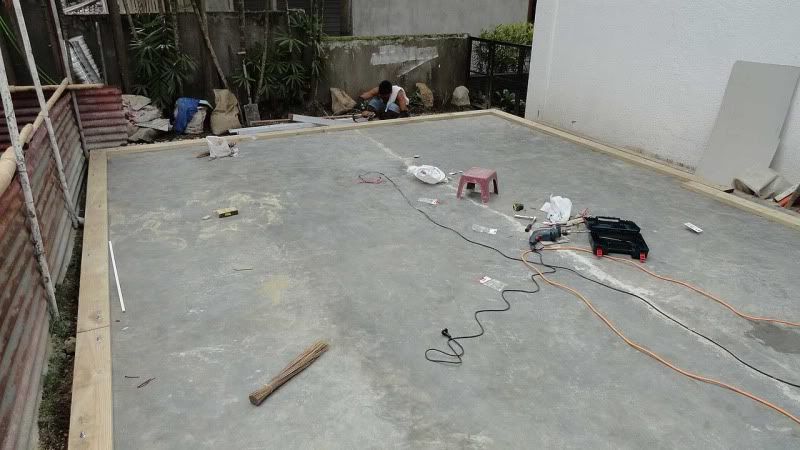

Started fixing the base plates (2x6) to the concrete, using this anchor bolts:

[softtouch]

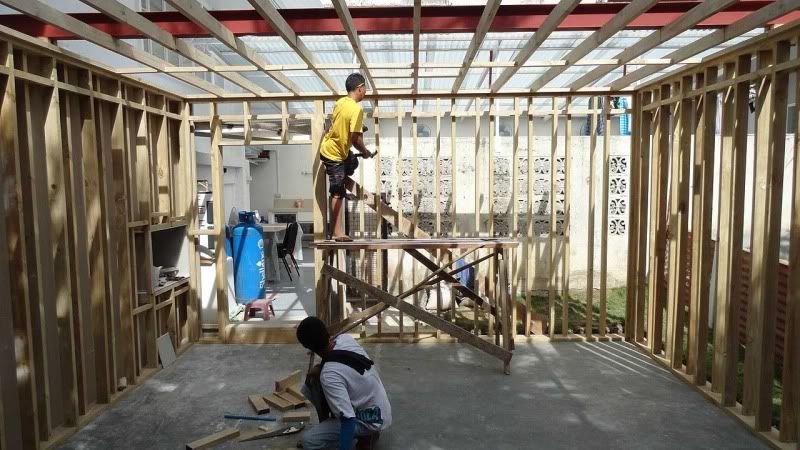

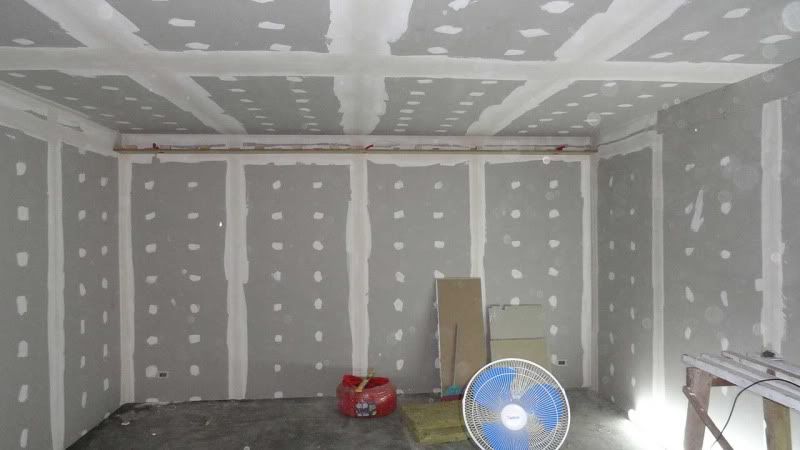

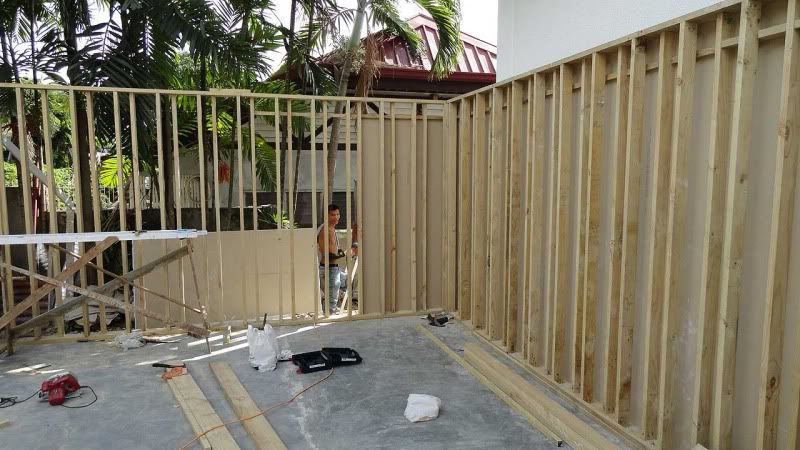

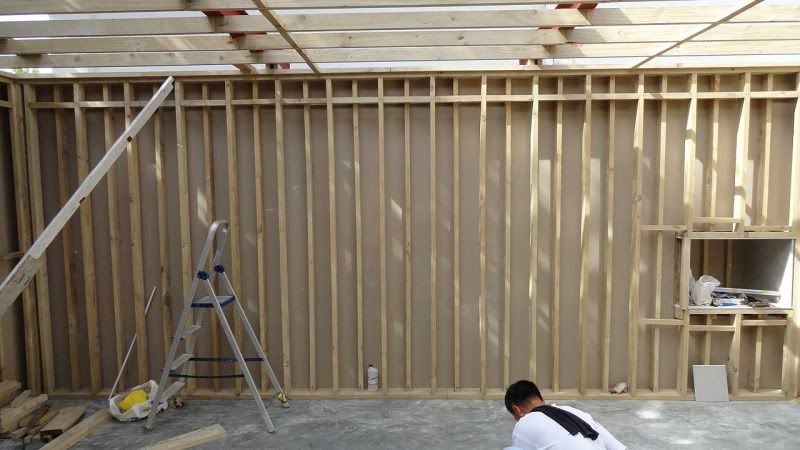

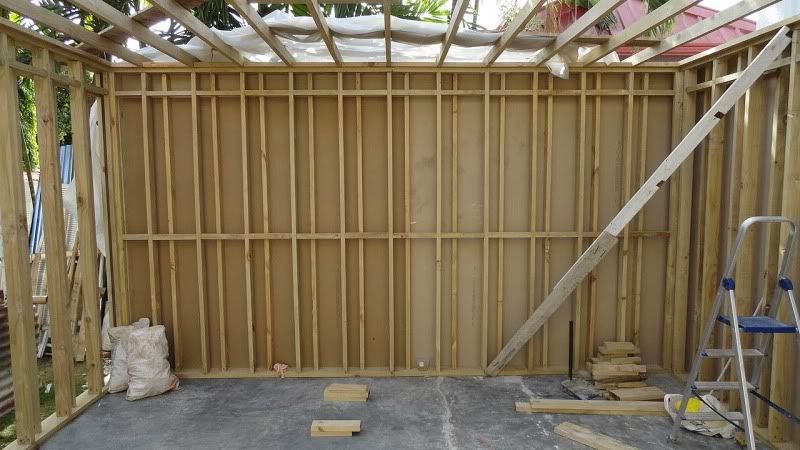

A little update. Started with the staggered stud walls and the drywall.

[softtouch]

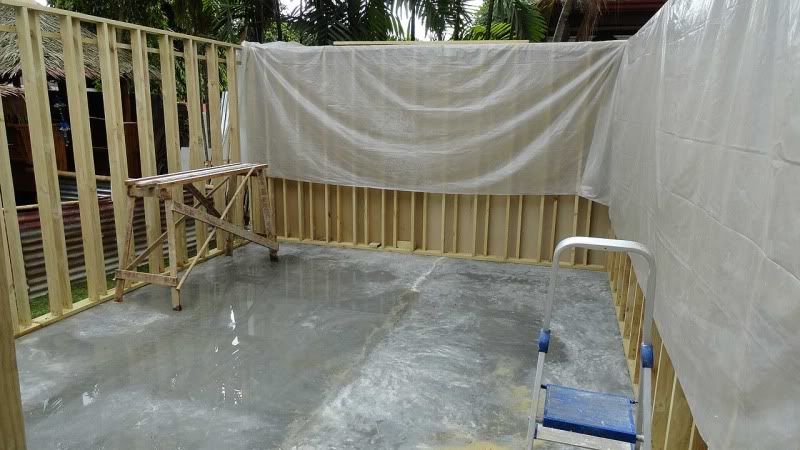

Last update. Rain caused a delay.

[softtouch]

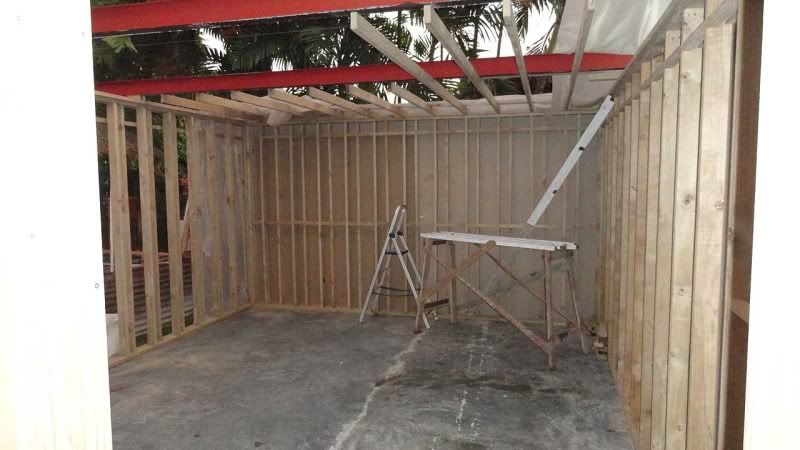

Little update. Added I-Beams to hold the ceiling.

[softtouch]

Little update:

[softtouch]

Little update:

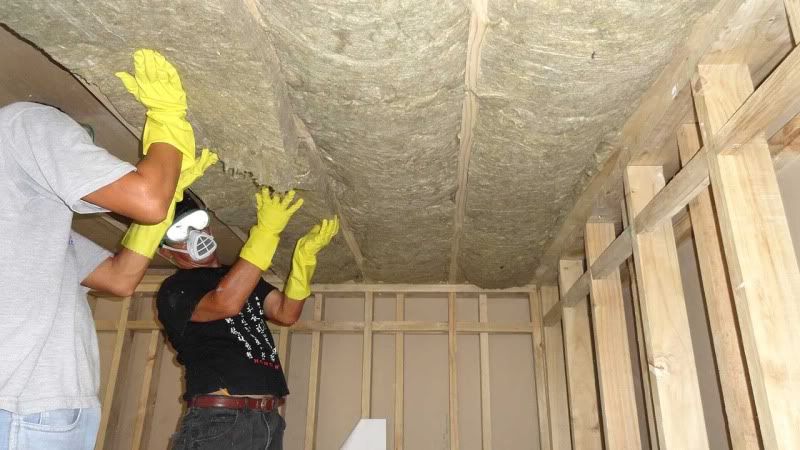

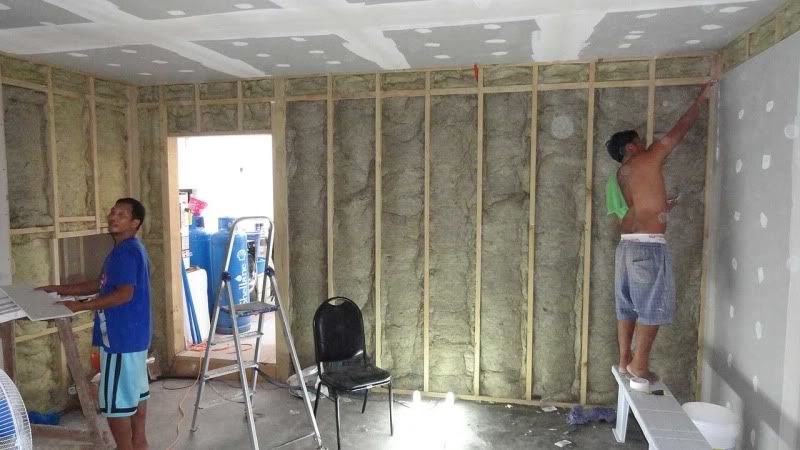

Outer walls are done, now starting with the ceiling and sound proofing.

[softtouch]

Update:

[softtouch]

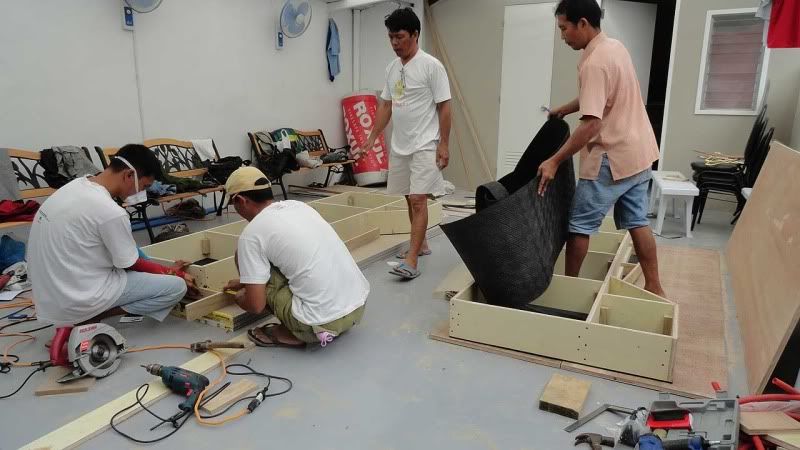

Construction of the stage

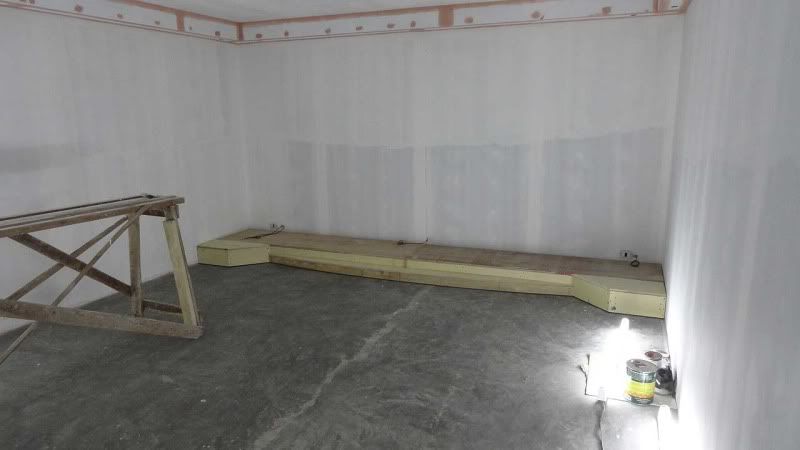

Stage in place


The stage will be filled with 1000kg fine dry sand to prevent any resonance.

[softtouch]

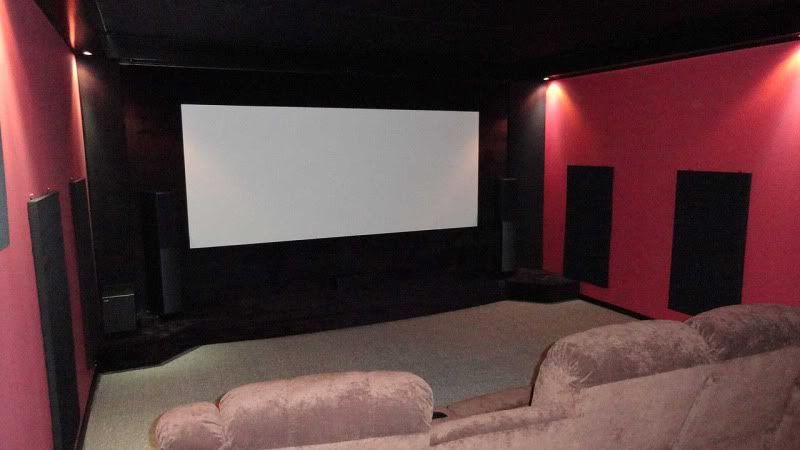

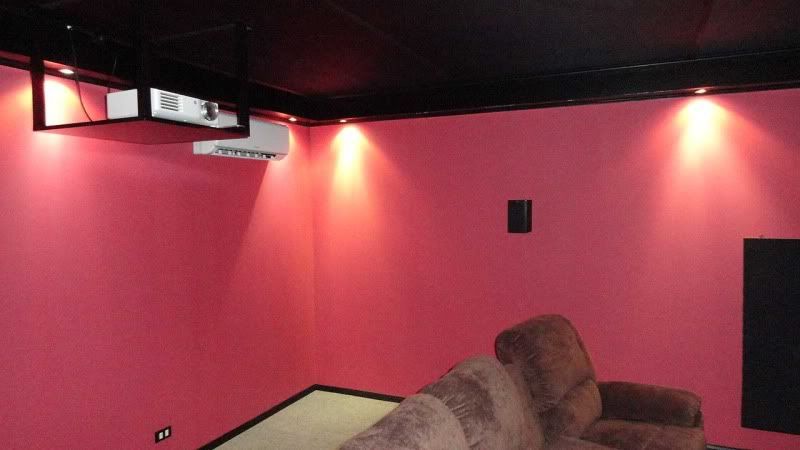

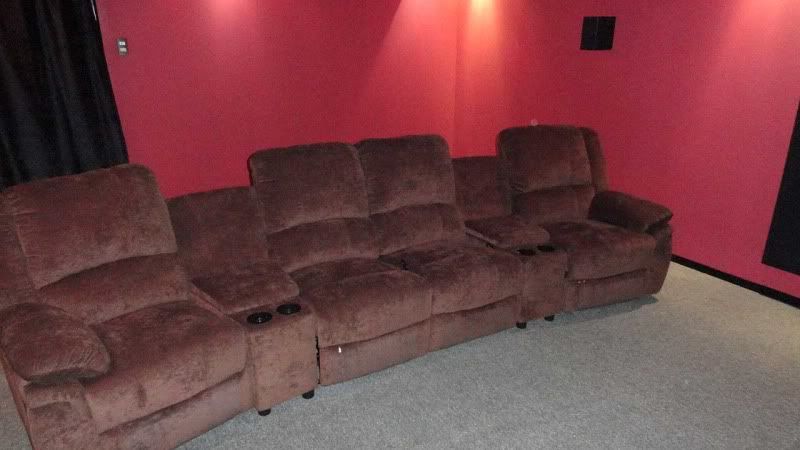

Some final pictures:

Note that the real color is Magenta, not pink. But the room is so dark, I had to use the flash and this have changed the colors a little...











Hardware:
Projector: Panasonic AX100 (will be replaced with a Panasonic AE4000 in a week or so)
Amplifier: Onkyo TX-SR605
Speaker: Jamo (Klipsch)
Video source: Popcorn Hour C-200, using gigabit network
Video storage: QNAP NAS 4TB connected to gigabit network

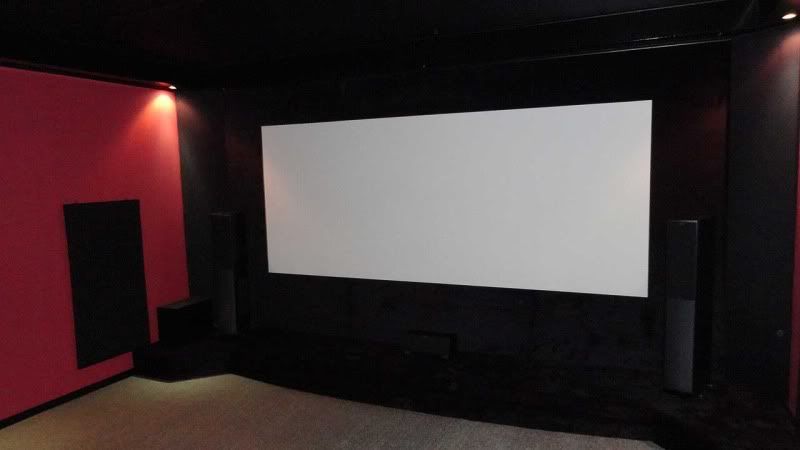

Screen: 317cm x 132cm (124.8" x 52")
Screen wall: covered with light absorbing material, similar to black felt
Stage: Filled with 1000kg fine sand to absorb any vibration and covered with light absorbing material
Ceiling: Sound proofed, covered with black fabric
