digital electronic nga subject

[ymxb18]

---

e drawing daw bro..i need the diagram para maka kita ko sa concept

sis ko bro...
muo2x na anang gipost ni stealthghost ai...

bitaw,asa diay ka skul? hu imong maestro ani?

[pulchra]

sayun rana bai basta maru ka hehe try duwa chess mau ranang tamaa..j\kng apike ka sa kani na hilok then lain na lihok imo gamiton

nor=or

nor ug not = or
nor(not or) paresan ug not = or

[erwin_rommel]

if pasabot nimo bro kay magcreate ka og and gate using a nor gate, dali ra kaayo. butangi lang nag inverter ang inputs sa nor gate, parehas na nag function sa and gate.

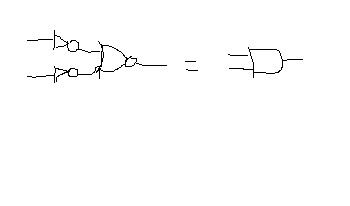

mao ni illustration:


sori sa drawing. autocad 2013 man gud ako gamit, sobra ra ka advanced.

[robstaman]

@erwin_rommel: grabeha ka helpful nimo bro oi.... hehehehehe!!!

@istoryansucks:try ni nga link Digital Logic Gates Part-III hope makatabang ni nimo... asa d i ka nagskwela??

[istoryansucks]

uc brad ......

[ymxb18]

gibati ko ug kakugi,lol...

kana una mao na ang NOR himuon ug converter, ang 2nd ang himuon ug and nya ang last OR...

[istoryansucks]

mura man tu-ong nawong baki among maestro..dli kahibalo mo tudlo lack of seminar..

[chealriecute]

kinsa na ka sulai ninyu digital electronic nga subject kanang or,and,not and nor gates.bati kaayo mo tudlo amo teacher drekso lang...na pa gud mi assignment Nor=not then Nor= and then Nor = or..unsa on mani mga bro.. i need your expertise...

ang pasabot sa imong assignment nga maghimo ka ug equivalent gates using the gates specified...
example:
Nor=not
combine nor gates (nor gates only way lain gate gamiton except nor gate lang) to make an equivalent not gate or to perform a not function.
Nor=and
combine nor gates (nor gates only way lain gate gamiton except nor gate lang) to make an equivalent and gate or to perform an and function.

ana raman na xa... cascade the gates ra..dali ra kaayo na...

[istoryansucks]

nor=not
nor=and
nor=or

[istoryansucks]

ang pasabot sa imong assignment nga maghimo ka ug equivalent gates using the gates specified...
example:
Nor=not
combine nor gates (nor gates only way lain gate gamiton except nor gate lang) to make an equivalent not gate or to perform a not function.
Nor=and
combine nor gates (nor gates only way lain gate gamiton except nor gate lang) to make an equivalent and gate or to perform an and function.

ana raman na xa... cascade the gates ra..dali ra kaayo na...

Sakto tong ilang diagram or concept?
