-Brand New- Free Installation

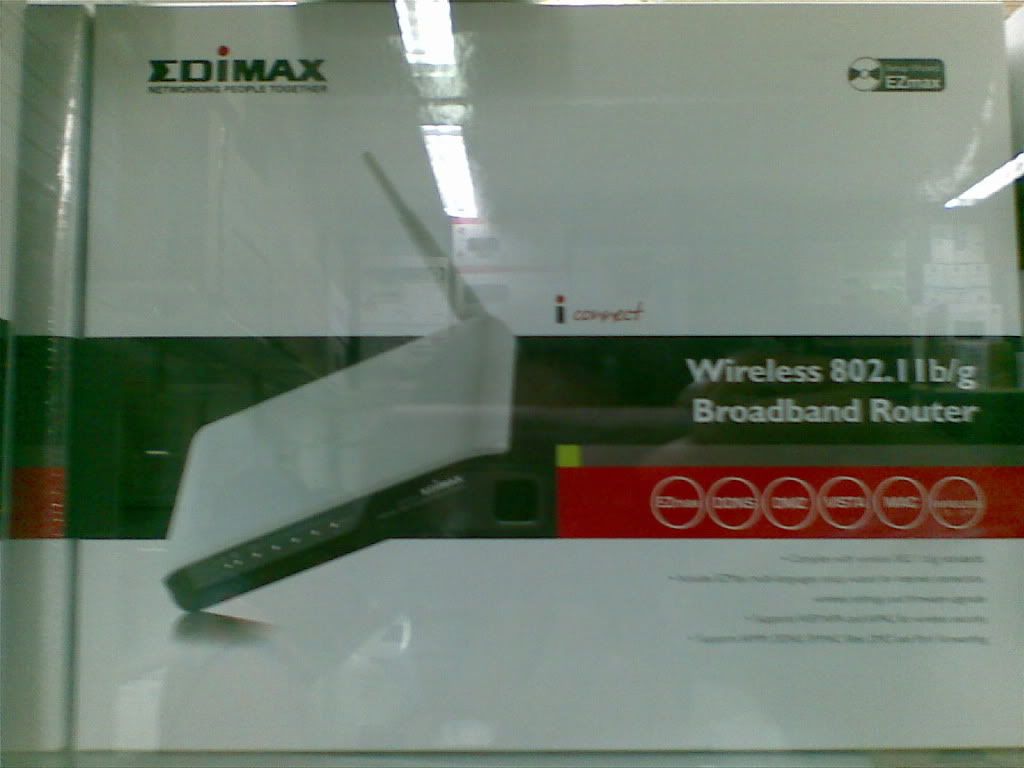

EDIMAX BR-6204WLg
Wireless IEEE802.11 b/g Broadband Router
- Complies with wireless 802.11b/g standards
- Includes 1 WAN port and 4 Fast Ethernet LAN ports
- Supports Client / WDS / AP+WDS wireless connection mode
- Includes 16-languages setup wizard for Internet connection,password, SSID, wireless settings and firmware upgrade
- Built-in hardware switch for wireless on/off
- Supports WEP, WPA, DDNS, IP/MAC filter, DMZ and DHCP.
Important Notice:
Due to the added new features, please press the reset button for 10 seconds after you update the F/W to v1.10a. All of your previous settings will be erased, and re-configuration is required.
Overview:
Internet Connection Sharing
Integrated 4-port Ethernet switch and wireless 802.11b/g standards, BR-6204WLg is able to maximize Cable or xDSL Internet connection. With the built-in DHCP server and NAT function, it allows up to 250 wired or wireless devices share the Internet connection at the same time.
Wireless On/Off Switch
The push button on the back panel enables you to switch on/off wireless connection easily. When there is no wireless device in the environment, you can press the button to stop wireless signal. It protects you from unauthorized wireless connection and saves energy.
EZmax Multi-languages Setup Wizard *
A unique 16-language setup wizard is included in the CD ROM. You can select your native language and follow the simple steps to setup Internet connection, password, SSID, wireless security and firmware upgrade.
Port Forwarding and DMZ
BR-6204WLg supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
Wireless Turbo Mode **
BR-6204WLg supports wireless turbo mode to increase the wireless performance 35% than the normal wireless 802.11b/g connection.
* The EZMax Setup Wizard only supports Edimax BR router series.
** You need to connect with EW-7316Ug and EW-7326Ig to enable the turbo mode.
‧
Products >
Wireless Series > Broadband Router
BR-6204WLg
Wireless IEEE802.11 b/g Broadband Router
- Complies with wireless 802.11b/g standards
- Includes 1 WAN port and 4 Fast Ethernet LAN ports
- Supports Client / WDS / AP+WDS wireless connection mode
- Includes 16-languages setup wizard for Internet connection,password, SSID, wireless settings and firmware upgrade
- Built-in hardware switch for wireless on/off
- Supports WEP, WPA, DDNS, IP/MAC filter, DMZ and DHCP.
Important Notice:
Due to the added new features, please press the reset button for 10 seconds after you update the F/W to v1.10a. All of your previous settings will be erased, and re-configuration is required.
Specifications
Internet Connection Sharing
Integrated 4-port Ethernet switch and wireless 802.11b/g standards, BR-6204WLg is able to maximize Cable or xDSL Internet connection. With the built-in DHCP server and NAT function, it allows up to 250 wired or wireless devices share the Internet connection at the same time.
Wireless On/Off Switch
The push button on the back panel enables you to switch on/off wireless connection easily. When there is no wireless device in the environment, you can press the button to stop wireless signal. It protects you from unauthorized wireless connection and saves energy.
EZmax Multi-languages Setup Wizard *
A unique 16-language setup wizard is included in the CD ROM. You can select your native language and follow the simple steps to setup Internet connection, password, SSID, wireless security and firmware upgrade.
Port Forwarding and DMZ
BR-6204WLg supports port forwarding and DMZ. You can enjoy the Internet game play, setup a web server and execute other applications required ports opening.
Wireless Turbo Mode **
BR-6204WLg supports wireless turbo mode to increase the wireless performance 35% than the normal wireless 802.11b/g connection.
* The EZMax Setup Wizard only supports Edimax BR router series.
** You need to connect with EW-7316Ug and EW-7326Ig to enable the turbo mode.
HARDWARE INTERFACE
MANAGEMENT
POWER ADAPTER
1 RJ-45 WAN Port
4 RJ-45 Ethernet LAN Ports
LED Indicators: Power,WLAN,WAN, LNK/ACT
High gain 3dBi Antenna
Wireless on/off Button and Reset Button
Supports Remote Management
System Status and Log (Web Interface)
Firmware Upgradeable
DC 12V, 1A
WAN
INSTALLATION
MEMORY
Supports cable/xDSL modem
WAN Protocols: PPPoE/Static IP/DHCP/L2TP/PPTP
Multi-language EZMax Setup Wizard
2 MB NOR Flash
8 MB SDRAM
SECURITY
Output Power & Receive Sensitivity
HUMIDITY & TEMPERATURE
NAT/NAPT IP Sharing
64/128-bit WEP, WPA and WPA2
Port / MAC / IP Filter
11g: 16 ±1dBm
11b: 18 ±1dBm 10-90% (Non-condensing)
0~45 Degree Celsius
FUNCTIONS
DIMENSION
CERTIFICATIONS
Wireless Mode : AP / AP Client / WDS / AP+WDS
WMM Function to Meet the Multimedia Transmission Requirement
DDNS (DynDNS, TZO)
Port Forwarding and DMZ
UPnP
VPN Pass Through (IPSec/PPTP)
Wireless Turbo mode
179 x 133 x 25 mm
CE, FCC
NETWORK SETUP DIAGRAM AND RELATED PRODUCTS
An example of how the BR-6204WL can be setup:
• Connect the BR-6204WLg router to your Ethernet (RJ-45) cable/ xDSL modem.
• Connect a computer to the LAN port and setup the Internet connection by running the multi-language setup wizard.
• Share the Internet connection by connecting a LAN cable to other computers or wireless devices.
• You can also share your printer using an Edimax print server.
Contact me : 0920-3492836 or 0923-6434946
Brand New- Edimax BR-6240 WLG wireless router for 1.8k
