VOLKSWAGEN "story, photos, experience, anything""

[huan]

---

ako pod boss nald ha..

[JeffCee]

mao di na mu engun sa mandaue bru,
maayo pa bya sa, same kang dragonz, orig pa guro mga accesories ana,
hehe apil pud ko ah

[littledrumz]

Story -

A tale to tell (or to ask):

Ngano man jud beh -

...nga inig agi sa atong bao manan-aw man ang mga pipol?

...if naka-park atong bao, tan-awon ug lingi-on man jud sa mga pipol?

apir!

[huan]

daghan kayu ug answers ana boss.. pwede..
1. nindut atong bao
2. bati, baduy, taya2x atong bao
3. hugaw atong bao
4. sinaw atong bao
5. attractive lang jud ang bao
6. shape niya
7. cool siya tanawon
8. idol jud siguro ang bao sa viewer
9. tiguwang na naai bao sauna nya ka remember lang siya
10. wala pa siya kita ug bao sa iyang kinabuhi.

hahaha

[automatism]

[robedencia]

[robedencia]

Beetle Year Identification and Chassis Number Table

by Robert Kuhn

What year is it?

It's not easy to tell one year from another. External changes throughout the years have been relatively minor. The only positive way to tell the year is by chassis number. Volkswagen began a chassis numbering sequence that ran consecutively from the 1940's through 1964.

Beginning in 1965, Volkswagen incorporated the year and model in the chassis number.

The first two digits identify the model as a Beetle (11) or a Karmann Ghia (14). The third digit is the last digit of the year, for example 5 would indicate 1965 and 2 would indicate 1972. The last six to seven digits are the chassis serial number.

So, if the first three digits of your chassis number is 118, then it would mean that it's a 1968 Beetle. Get it?

The location of the chassis number:

Stamped on the frame tunnel under the rear seat

On the ID plate behind the spare tire on all except Super Beetles.

On the ID plate next to the front hood lock on Super Beetles

On all cars since January 1, 1969, at the top edge of the instrumental panel.


The engine number is stamped on the base of the generator/alternator stand. The letter preceeding the numbers help identify the engine size and horsepower.

Below are some tables which shows all changes which has occured from 1961 through 1977. But remember, the presence of one or more of these changes does not identify a particular model year. Parts are very easily changed between years which is one of the great things about the Volkswagen in general.

Year Chassis Numbers Description
1961 3 192 507
to
4 010 994 Sunvisor and grab handles provided for passenger's side
Increased horsepower; from 36 to 40
Automatic choke introduced
Transmission synchronized in all forward speeds
Increased trunk space due to the flatter style gas tank
Transparent "Quick Check" brake fluid reservoir
Pump-type windshield washer
Non-repeat starter switch
1962 4 010 995
to
4 846 835 Sping-loaded hood
Larger taillights
Sliding covers on the outlets
Compressed air windshield washer
Seat belt mounting points added
Gas gauge; formerly reserve fuel tap
1963 4 846 836
to
5 677 118 Leatherette headliner introduced
Wolfsburg hood crest dropped
Foam insulated floor
Fresh air heating
Nylon window guides
1964 5 677 119
to
6 502 399 Crank operated sliding steel sunroof replaces the fabric sunroof
Horn acuated by two thumb buttons
Larger license plate light
Aerated vinyl material replaces nonporous leatherette seat upholstery
1965 115 000 001
to
115 979 200 Windows enlarged; slimmer door and windshield posts.
Heat control levers mounted on tunnel; heater efficiency improved.
Rear seatback converts to platform
Push-button catch on engine lid
Thinner, deeply contoured front seats; increased rear seat knee room
Swivel mounted sun visors
1966 116 000 001
to
116 1 021 298 Increased horsepower (from 40 to 50) and displacement (from 1200cc to 1300cc), number 1300 on engine lid
Ventilating wheel slots; flat hub caps
Headlight dimmer switch mounted on turn signal
Center-dash defroster outlet
Semi-circular horn ring
1967 117 000 001
to
117 844 892 Increased horespower (from 50 to 53) and displacement (from 1300cc to 1500cc)
Single-unit headlights with chrome rim; fender indented
Dual brake system; front and rear operate independently
Back-up lights
Parking light incorporated into front turn signals
Locking buttons on door
12 Volt electrical system (36 amp battery)
VOLKSWAGEN nameplate on engine lid
1968 118 000 000
to
118 1 016 098 One piece bumpers; bows and overriders eliminated (bumper height raised)
Head restraints combined with front seat backrests
Optional automatic stick shift introduced
External gas filler; spring loaded flap
Front hood air intake louver; push button front hood catch
Fresh air ventilating system
Collapsible steering column
Exhaust emission control system
Flattened door handles with built in trigger release
Back-up light, brake light and rear turn signal in single housing
Certification sticker on door post that vehicle meets federal safety standards
1969 119 00 001
to
119 1 93 704 Rear window defogger and defroster; electric heating wires on inner surface of glass
Double-jointed (IRS) rear axle for improved ride and handling
Warning lights in speedometer identified by letters or symbols
Ignition lock is combined with a locking device for the steering wheel
Gas tank filler neck flap has lock which has a release under the right side of the dash panel
Front hood release is located in the glove compartment
Day/night rear view mirror
Warm air outlets at base of the doors moved rearward; remote control knobs on door columns
1970 11 0 2000001
to
11 0 3096945 Air intake slots on engine lid
Increased horsepower (from 53 to 57) and displacement (from 1500cc to 1600cc)
Enlarged front turn signals (combined with side marker lights)
Reflectors mounted on rear bumper
Tenths of a mile indicator on odometer (also appears on late '69 models)
Head restraints reduced in size
Buzzer sounds when door is opened and key is left in the ignition
Remote control knobs for warm air outlets discontinued
Lock in glove compartment door
Side reflectors built into taillight housing

Year Desciption
1971 Beetle Increased horsepower, from 57 to 60
Flow-through ventilation and exhaust ports behind rear side windows
Headlights automatically go off and parking lights stay on when ignition is turned off
Larger taillights
1971 Super Beetle In addition to major improvements built into the 1971 Beetle, the Super Beetle features fan powered flow-through ventilation
Nearly double the trunk space of the Beetle. Spare tire positioned horizontally under trunk floor
New coil spring front suspension giving the car a wider front track and tighter turning circle
Carpeted floors
Rubber bumper inserts
1971 Chassis Number: 1112 000 001 -
1412 000 001 -
1972 Beetle and Super Beetle Larger rear window
Four sets of louvers on rear hood (all models)
Enlarged outer door handle finger recesses and trigger
Lid over rear luggage area
New safety steering wheel
Rubber body mounts to reduce noise
Windshield wiper switch on steering column
Lower compression ratio
Pistons have recessed crowns
Modified chokes on carburetor
Modified muffler and preheater pipe for faster preheating
Preheated air controlled by temprature and engine vacum
Special system on automatic stick shifts to reduce nitrogen oxides
1972 Chassis Number: 1122 000 001 -
1422 000 001 -
1973 Beetle and Super Beetle Energy absorbing bumpers
Safety interlock seat belts
Modified exhaust gas recirculation
TDC sensor flywheel
Negative steering roll radius (113 only)
New cylinder head alloy
1973 Chassis Number: 1132 000 001 -
1432 000 001 -
1974 Beetle and Super Beetle New windshield wiper arms
Redesigned dash
Improved transmission mounts
Parking lock on automatic stick shift
Reinforced side gaurd doors
Exhaust gas recirculation modifications
Larger taillights
Curved windshield
Improved fresh air ventilation
1974 Chassis Number: 1142 000 001 -
1442 000 001 -
1975 Beetle and Super Beetle Electronic fuel injection with FUEL INJECTION insigna on rear deck lid
Single tailpipe
Increased horsepower; 48 hp up from 46 (SAE net)
Clutch pedal pressure eased
Larger exhaust valve stems for better heat transfer
New heat exchangers for greater heater output
Installation of battery ground cable with diagnosis contact for more accurate computer analysis readings
Odometer triggers red warning light EGR in speedometer to notify driver of service requirements
California models with catalytic converter require lead free gasoline; fuel filler neck has smaller opening for nozzle
Maintenance intervals extended to 15,000 miles
1975 Chassis Number: 1152 000 001 -
1352 000 001 -
1976 and 1977 Beetle and Super Beetle New speedometer with outer scale in mile per hour and inner scalein kilometers per hour (on most 1976 models)
Redesigned front seats with improved back adjustment, for added comfort and body support
2-Speed fresh air blower
All trim components chrome plated
Automatic stick shift option
Standard rear window defogger
Standard sports style wheel rims and full carpeting
high altitude over 4,000 ft. above sea level
1976 Chassis Number: 1162 000 001 -
1977 Chassis Number: 1172 000 001 -



Chassis Number and Engine Number/Letters
Year Chassis Number Engine Number Displacement Horse Power
1961
1962
1963
1964 3,192,507 - 4,010,994
4,010,995 - 4,846,835
4,846,836 - 5,677,118
5,677,119 - 6,502,399 5,000,001 - 8,309,892 1200 40
1965 115 000 001 -
145 000 001 - D 1200 40
1966 116 000 001 -
146 000 001 - F 1300 50
1967 117 000 001 -
147 000 001 - H 1500 53
1968 118 000 001 -
148 000 001 - H 1500 53
1969 119 000 001 -
149 000 001 - H 1500 53
1970 1102 000 001 -
1402 000 001 - B 1600 57
1971 1112 000 001 -
1412 000 001 - AE 1600 60
1972 1122 000 001 -
1422 000 001 - AE 1600 57
1973 1132 000 001 -
1432 000 001 - AH 1600 46
1974 1142 000 001 -
1442 000 001 - AH 1600 46

Here's the chassis numbers for 1975 thru 1979. I don't know what the engine letter/number is for these years. The horse power rating are from other sources (ie: peers, magazine articles, books, et cetera).

Year Chassis Number Engine Number Displacement Horse Power
1975 1152 000 001 -
1352 000 001 - Unkown by me 1600 48
1975 1152 000 001 - Unkown by me 1600 48
1976 1162 000 001 - Unkown by me 1600 48
1977 1172 000 001 - Unkown by me 1600 48
1978 (*) 1582 000 001 - Unkown by me 1600 48
1979 (*) 1592 000 001 - Unkown by me 1600 48
(*) = Convertible onl

[automatism]

I MAY LOOK SLOW, BUT WATCH ME GO

[JeffCee]

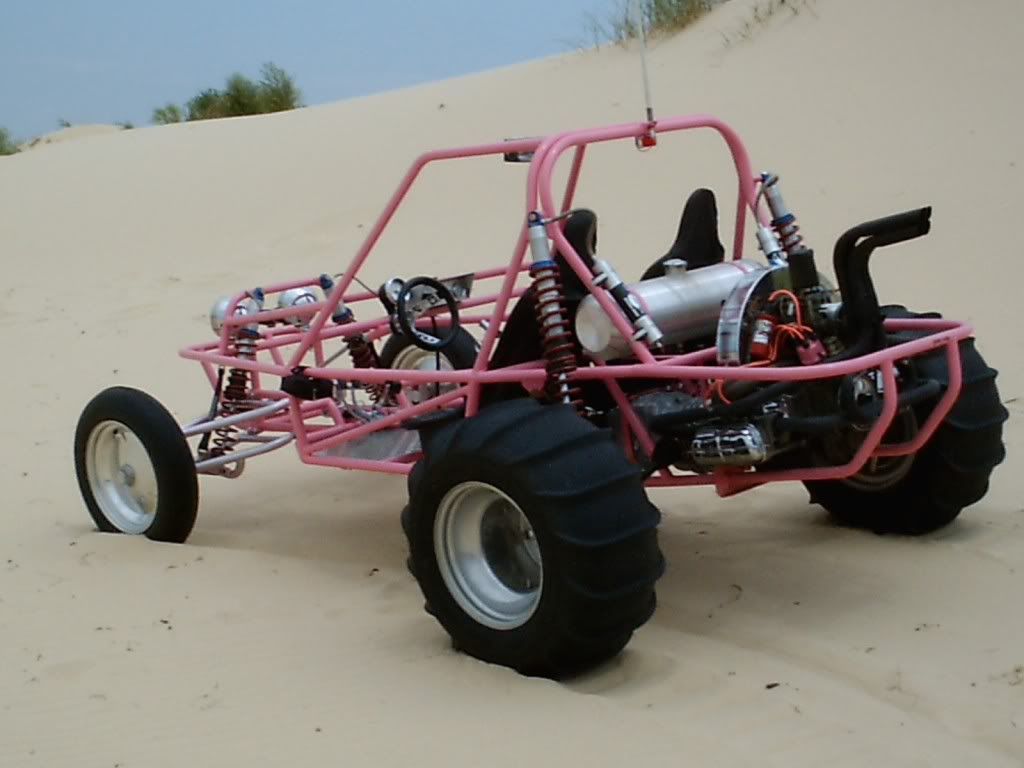

Country Buggy/ Sakbayan



sLoW?


All in oNe vehicle - Westfalia


LoL

[automatism]

SLOW?
[IMG]http://4.bp.blogspot.com/_p_Jy3EtIz9s/TJrqzeeyVCI/AAAAAAAABpI/j2LZ5hdEYWc*******RacingEdit1%28OldPosterLook2%29.jpg[/IMG]
